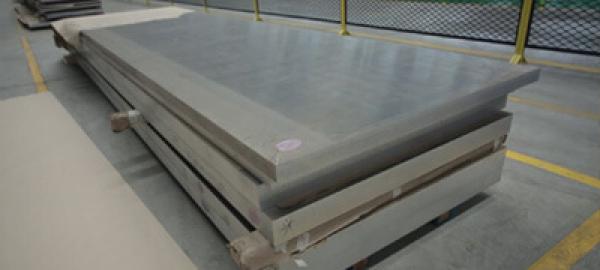

5083 Aluminium Plate
We are manufacturer of Best quality 5083 Aluminium Plate
- Metalfort
- In Stock
aluminum alloy is suitably known for its exceptional performance in the most intense circumstances. The compound represents high resistance to both seawater and manufacturing artificial environments and has the many upper strength of all the non-heat treatable alloys although that is not prescribed for use in warmth above 65°C.
ASTM B209 Aluminium 5083 Plate, UNS A95083 Plates, DIN 3.3547 Plate, Aluminum 5083 Chequered Plate, Aluminium 5083 Plates, 5083 Aluminum Plates, Aluminium 5083 Sheets, Aluminium 5083 Plate, Aluminium Plate 5083 Suppliers in Mumbai, India.
Metalfort Inc. is one of the most pre-eminent enterprises in the market that fabricates and transships high-quality ALUMINIUM PLATE 5083. The industry is extensively known amidst the clients for providing them with some different features on the outcome. This characteristic includes high edge finishing, specific dimensions, appropriate delivery, and excellent affordable prices. Aside from this, the customers offered with customized specs on aluminium plates varying in volume and forms as per their requirement. The enterprise is giving complete customer accomplishment to their buyers when it comes to features, performance, longevity, and reliability of the 5083 grade aluminium plates. Speaking regarding the documents, the documents tendered with ALUMINIUM PLATE 5083 are a commercial invoice, heat treatment chart, QAP, material tests certificates; raw material report and packaging list are some of the requisite reports supported.
ASME B209 Aluminium 5083 Plate Manufacturers, 5083 aluminum suppliers, Grade 5083 Aluminium Plate, 5083 Aluminium Hot Rolled Plate, Aluminium 5083 Alloy Plate, Aluminium 5083 Perforated Sheet, 5083 Aluminum Sheets Exporter in India.
Aluminium 5083 HR Plate Exporter in Mumbai, EN AW-5083 Equivalent Material, Aluminium 5083 Round Bar, Aluminium 5083 Cold Rolled Sheets Manufacturer, 5083 Aluminum Plate Suppliers, Aluminium 5083 Checkered Plates.
Aloof from this, the enterprise expert conducts particular physical tests to ensure the feature before lastly passing it to the patrons. Material tests accompanied are a mechanical test, hardness test, PMI, IGC, pitting resistance test, and hydrostatic tests are some of the tests performed on the ALUMINIUM PLATE 5083. Furthermore, the tests certifications offered are manufacturer TC in conformance with EN 10204, raw material report and third-party investigation.
Material testing:
ALUMINIUM PLATE 5083 is examined by the experts to warrant the strict quality. These tests are conducted before finally delivering it to the buyers across the globe. Tests administered are a mechanical test, hardness test, eddy current test, hydrostatic test, pitting resistance test, chemical analysis, positive material identification, intergranular corrosion test, and flaring test.
Tests certifications:
ALUMINIUM PLATE 5083 is offered with the relevant tests certifications. Manufacturer TC in conformance with EN 10204, raw material test report, radiography tests reports and other standard inspection reports are offered by the company
Aluminium 5083 Plate Equivalent Grades
| Grade | WERKSTOFF NR. | UNS | DIN | EN | ISO |
| 5083 | 3.3547 | A95083 | AlMg4,5Mn | AW-AlMg4,5Mn0,7 | AlMg4,5Mn0,7 |
ASTM B209 Aluminium 5083 Plate Specification
Specifications : ASTM B209 / ASME SB209
Standard : ASTM, ISO, GB, DIN, EN, etc
Thickness : 0.2~300mm
Width : 500~2500mm
Length :500~10000mm
Aluminum Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating
Temper : O, F, H12, H14, H16, H18, H19, H22, H24, H26, h22, h24, h26, h28, H111, H112, h221, T3, T4, T5, T6, T7, T351, T451, T651, T851
Form :Coils, Foils, Rolls, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange)
5083 Aluminum Plate Chemical Composition
| 5083 | Value |
| Si | 0.40 max |
| Fe | 0.40 max |
| Cu | 0.10 max |
| Mn | 0.40 - 1.0 |
| Cr | 0.05 - 0.25 |
| Mg | 4.0 - 4.90 |
| Zn | 0.25 max |
| Ti | 0.15 max |
| Al | Balance |
| Other Each | 0.05 max |
| Others Total | 0.15 max |
ASTM B209 Aluminium 5083 Plate Mechanical Properties
| Proof Stress | 125 Min MPa |
| Tensile Strength | 275 - 350 MPa |
| Elongation % | 12 Min % |
| Hardness Brinell | 75 HB |
Physical Properties of 5083 Aluminium Plate
| Property | At | Value | Unit |
| Density | 20°C | 2,660 | kg/m³ |
|---|---|---|---|
| Weight | 20°C | 2.66 x thickness in mm | |
| Melting Range | 574 – 638 | °C | |
| Modulus of Elasticity | |||
| Tension | 20°C | 70.3 | GPa |
| Torsion | 20°C | 26.4 | GPa |
| Compression | 20°C | 71.7 | GPa |
| Mean Coefficient of Expansion | 20°C | 24.2 | x 10 -4 / °C |
| Thermal Conductivity | 25°C | 120 | W / m. °C |
| Electrical Resistivity | 20°C | 59.5 | nano-ohm . m |
| Electrical Conductivity | |||
| (all tempers) | 20°C | 29 | % IACS |
